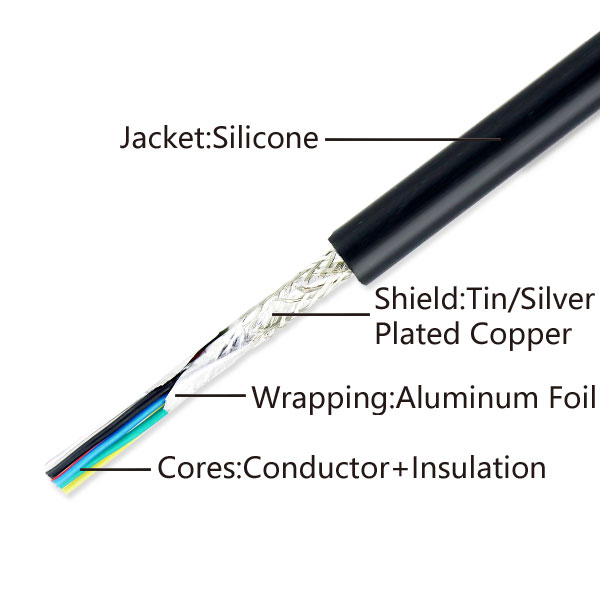

High temperature cable KFPG
Applications:
Used at Rated coltage 300V/500V or below with various movable electric machines, stel plant. aviation, power plant petrochemical insustry and outdoor lighting of high temperature area.
Technical Data:
- Jacket: Silicone Rubber
- Insulation: FEP Teflon
- Conductor: Tinned Copper
- Temperature Range: -60'C~﹢200'C
- Rated Voltage: 300V/500V
- O.D.Tolerance: ±0.1mm
- Colour: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
KFPG Teflon Insulation Silicone Rubber Jacket Cable
Conductor | Insulation | Jacket | Electrical Properties | |||
---|---|---|---|---|---|---|
Sectional Area mm² |
Conductor Construction NO.XΦmm |
Insulation Thickness mm |
Outer Diameter mm |
Jacket Thickness mm |
Average Diameter mm |
Max.Conductor Resistance DC 20'C Ω/km |
2x0.35 | 19/0.16 | 0.25 | 1.3 | 1 | 5 | 53.1 |
3x0.35 | 19/0.16 | 0.25 | 1.3 | 1 | 5.4 | 53.1 |
4x0.35 | 19/0.16 | 0.25 | 1.3 | 1.2 | 6.2 | 53.1 |
5x0.35 | 19/0.16 | 0.25 | 1.3 | 1.2 | 6.5 | 53.1 |
6x0.35 | 19/0.16 | 0.25 | 1.3 | 1.2 | 7 | 53.1 |
7x0.35 | 19/0.16 | 0.25 | 1.3 | 1.2 | 7 | 53.1 |
2x0.5 | 19/0.18 | 0.25 | 1.4 | 1 | 5.2 | 40.1 |
3x0.5 | 19/0.18 | 0.25 | 1.4 | 1 | 5.5 | 40.1 |
4x0.5 | 19/0.18 | 0.25 | 1.4 | 1.1 | 6.1 | 40.1 |
5x0.5 | 19/0.18 | 0.25 | 1.4 | 1.2 | 6.8 | 40.1 |
6x0.5 | 19/0.18 | 0.25 | 1.4 | 1.3 | 7.2 | 40.1 |
7x0.5 | 19/0.18 | 0.25 | 1.4 | 1.3 | 7.4 | 40.1 |
2x0.75 | 19/0.23 | 0.25 | 1.7 | 1.2 | 6.3 | 24.6 |
3x0.75 | 19/0.23 | 0.25 | 1.7 | 1.4 | 7 | 24.6 |
4x0.75 | 19/0.23 | 0.25 | 1.7 | 1.6 | 8 | 24.6 |
5x0.75 | 19/0.23 | 0.25 | 1.7 | 1.5 | 8.2 | 24.6 |
6x0.75 | 19/0.23 | 0.25 | 1.7 | 1.5 | 8.6 | 24.6 |
7x0.75 | 19/0.23 | 0.25 | 1.7 | 1.6 | 8.8 | 24.6 |
2x1 | 19/0.26 | 0.25 | 1.8 | 1.2 | 6.6 | 20.4 |
3x1 | 19/0.26 | 0.25 | 1.8 | 1.4 | 7.3 | 20.4 |
4x1 | 19/0.26 | 0.25 | 1.8 | 1.4 | 7.8 | 20.4 |
7x1 | 19/0.26 | 0.25 | 1.8 | 1.6 | 8.6 | 20.4 |
